Sialon rotor, impeller & shaft

Sialon alternative for graphite rotor, impeller and shaft for degassing in molten aluminium.

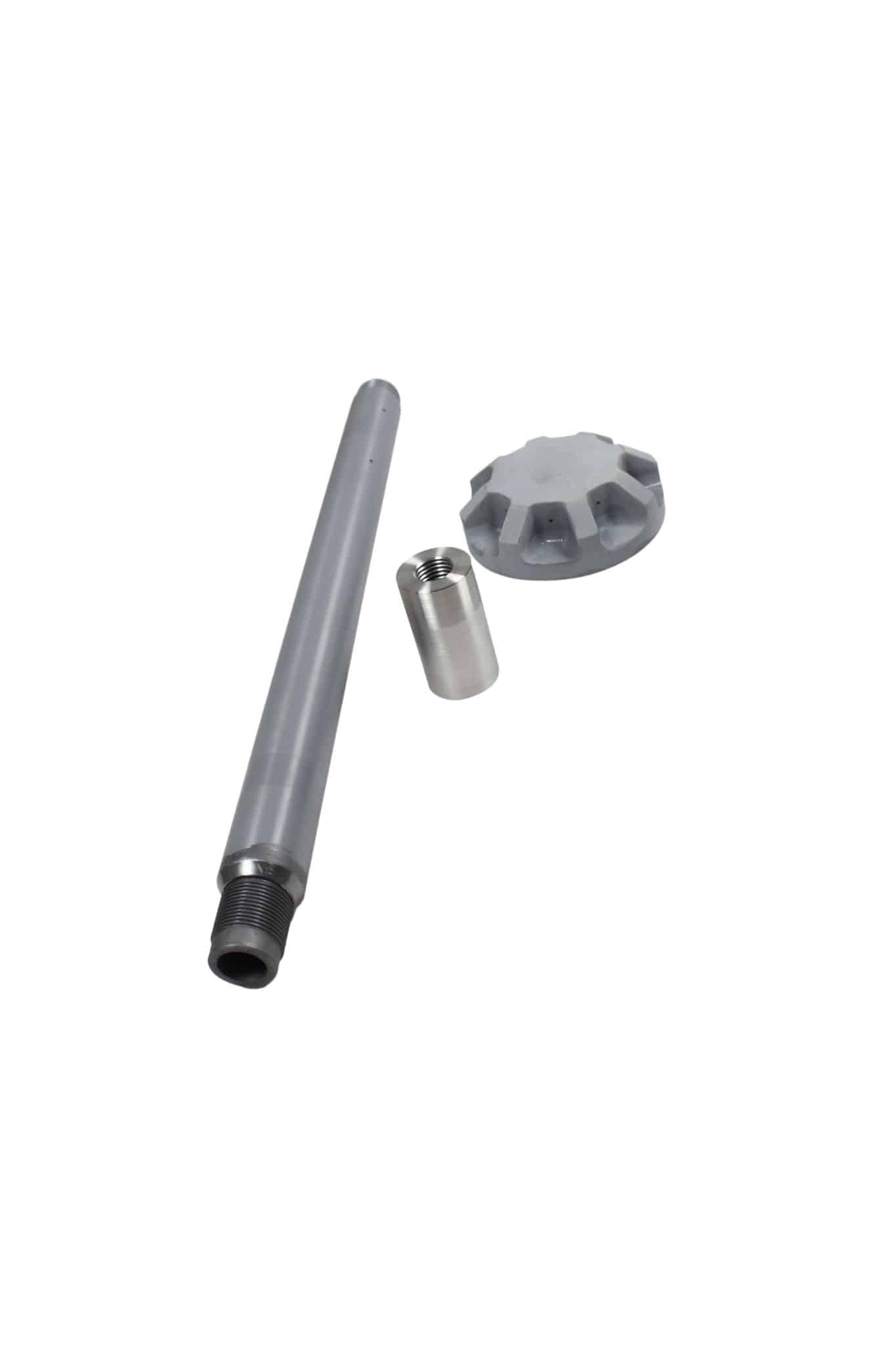

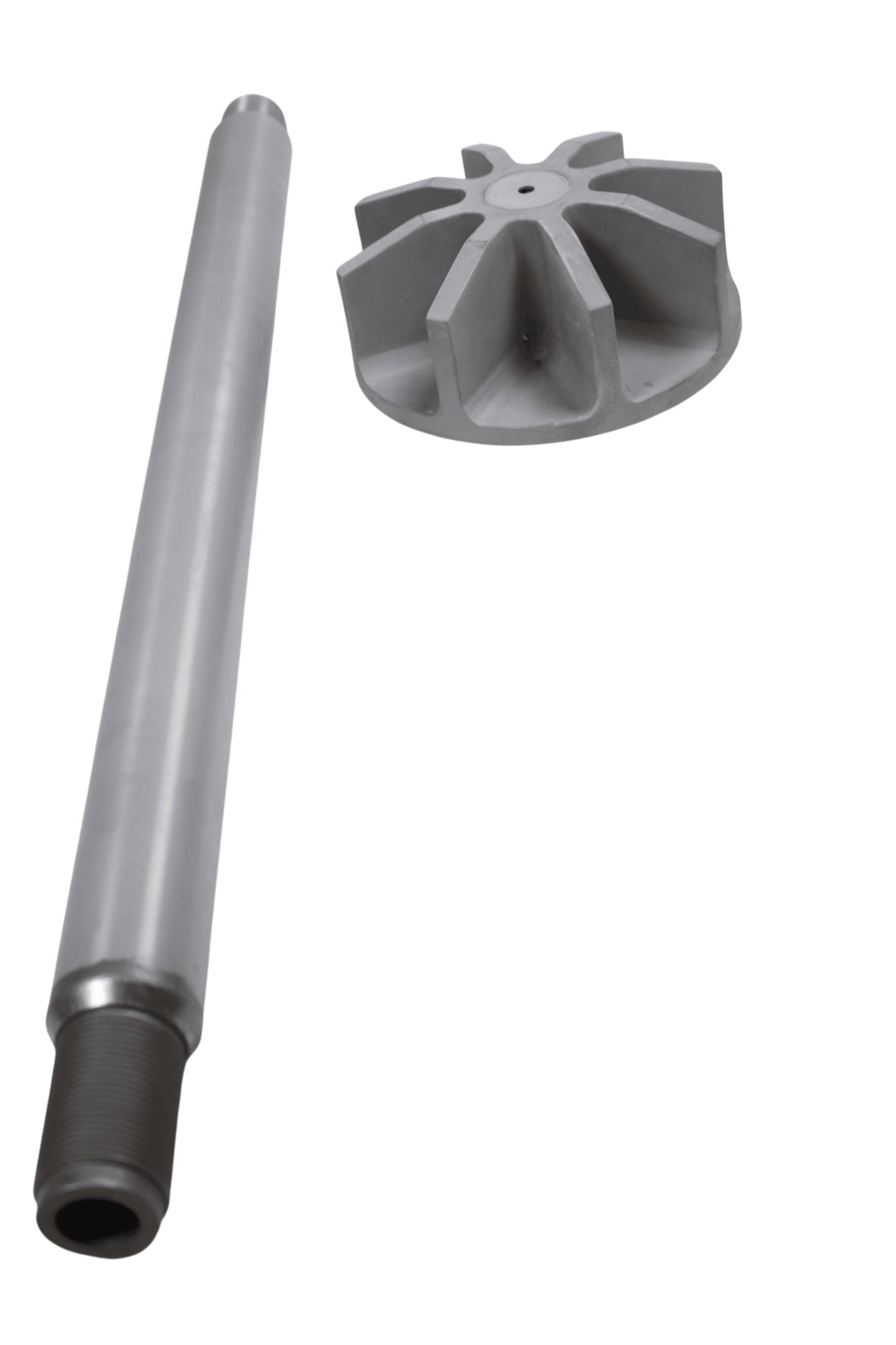

The rotor is composed of a sialon shaft with quick or threaded coupling and by the rotor impeller. The rotor geometry is designed for adapting to degassing devices used in furnaces and ladles. The rotor can be used in a wide temperature range: from 650 to 1400° C. The sialon has excellent non-wetting properties and a very long service life compared to graphite rotors and shafts.

The Sialon rotor shaft impeller is designed to inject and evenly disperse an ascending flow of tiny bubbles of the process gas (inert gas, with a possible addition of chlorine to reduce alkali).

8 in stock (can be backordered)

Sialon rotor, impeller & shaft

Graphite rotorIntroducing the new Sialon alternative for graphite rotor impeller & shaft to be used for degassing in molten auminium.

Graphite rotors, impellers and shafts are widely used for dispersing hydrogen of Aluminium.

During aluminum and aluminum alloy smelting, hydrogen produced by chemical action with steam diffuse in molten aluminum, which will cause inner structural defect to aluminum products. In order to avoid such defect, most aluminum factories apply dissolved gas floating method to purify molten aluminum. i.e. inert gases such as nitrogen, argon is injected into molten aluminum, and hydrogen will be brought to molten aluminum surface with spread and rise of inert gas.

A Sialon Rotor and shaft set is necessary to inject inert gas and stir for degassing regarding both intermittent and continuous online degassing methods. Because of its unique properties of heat-resistance, anti-oxidation, high strength and non- infiltration, Sialon becomes the optimal choice for material of rotor and shaft, which is known as graphite rotor/impeller and shaft set.

Nowadays, as an alternative to graphite rotors, impellers and shafts, ultrasonic degassing in molten aluminium has now become the standard. A 20 kHz ultrasonic generator creates cavitation which disperses the hydrogen in the aluminium bath. This technology is also used for ultrasonic grain refinement and ultrasonic micro-alloying in molten non-ferrous melts.

Material data sheetSialon (Si3Al3O3N5)
Typical Sialon gradesNVD-001NVD-002NVD-003NVD-004
Bulk Densityg/cm33.23.13.33.2
Water Absorption0000
Flexural StrengthMPa5809001,020790
Vickers Hardness HV1GPa13.912.715.013.8
Fracture Toughness (SEPB)MPam1/24 ~ 56 ~ 776 ~ 7
Young’s Modulus of ElasticityGPa290270300290
Poisson’s Ratio0.280.280.280.28
Coefficient of Linear Thermal (40 – 800 °C)

Expansion

×10-6/℃3.23.43.33.5
Thermal Conductivity (20℃)W/(m・k)25232754
Specific HeatJ/(g・k)0.640.660.650.66
Heat Shock Resistance550800800900
Volume Resistivity (20℃)Ω・cm>1014>1014>1014>1014

Please visit our brochure page to get a free download!
