Thermo-Tip® Thermocouples

Non-Ferrous Foundry & Electrolysis Thermocouples for fast, accurate, low cost, long-life, intermittent temperature sensing below 2300°F (1255°C)

For use in molten brass, copper, aluminum, lead and other non-ferrous metals. Our Thermo-Tip is used in launders, crucibles and aluminium electrolysis. The 446 SS sheath (0.500″ OD) protects a 16 gage ANSI Type K and S thermocouple. Insulated at the hot end with double bore ceramic insulators and fiberglass sleeving at the cold end. Interchangeable with other makes. The armored Thermo-Tip construction and secial limits Class I wires assures accurate readings with 25% more pours than competitive Thermocouples.

19 in stock (can be backordered)

Please describe in detail your request for quotation:

Loading...

Non-Ferrous Foundry Thermocouples

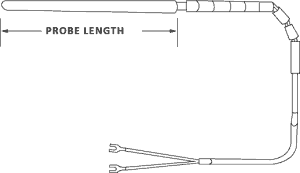

Thermo-Tip® Thermocouples 5Thermo-Tip thermocouples are designed for intermittent temperature sensing below 2300°F (1255°C), for use in molten brass, copper, aluminum, lead and other non-ferrous metals. The 446 SS sheath (0.500″ OD) protects a 16 gage ANSI Type K thermocouple. Insulated at the hot end with double bore ceramic insulators and fiberglass sleeving at the cold end. Interchangeable with other makes.

PROBE LENGTHS FOR HOLDER LENGTHS
43″ Part No. 55″ Part No. 72″ Part No. 96″ Part No.
8″ NVD-084 NVD-085 NVD-087 NVD-089
12″ NVD-124 NVD-125 NVD-127 NVD-129
15″ NVD-154 NVD-155 NVD-157 NVD-159
20″ NVD-204 NVD-205 NVD-207 NVD-209
24″ NVD-244 NVD-245 NVD-247 NVD-249
30″ NVD-304 NVD-305 NVD-307 NVD-309

Thermo-Tip® Thermocouples 6

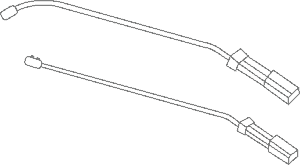

Thermo-Tip® Holder

The Thermo-Tip® holder is constructed of a stainless steel tube with reinforced thermoset molded grip. Thermocouple installs in stainless steel sleeve with two stainless set screws. Removing one half of grip exposes terminals for easy thermocouple replacement. Interchangeable with other makes.

Curved holder is available in lengths of 43″, 55″, 72″ and 96″. Straight holder is available in 31″ length only.

PART NO. LENGTH
NVD-001
Curved Holder
43″
55″
72″
96″
NVD-002
Straight Holder
31″

Thermo-Tip® Thermocouples 7

Armored Extension Cable

Connects the Thermo-Dip holder to wall mounted instrument. Flexible armor protects 16 ga. Type KX extension wire; strain relief springs provide extra protection at each end.

Available in lengths from 5 feet.

PART NO. LENGTH
NVD-005-(*) 5 feet
(*)=Total cable length in feet

Thermo-Tip® Thermocouples 8

Thermo-Tip® Holder with Pyrometer

The Thermo-Tip® holder is constructed of a stainless steel tube and box with reinforced thermoset molded grip. Thermocouple installs in stainless steel sleeve with two stainless set screws. Removing one half of grip exposes terminals for easy thermocouple replacement. Pyrometer 819-K indicator slides into holder for fast dependable connections.

PART NO. LENGTH
NVD-006 43″
55″
72″
96″

Thermo-Tip® Thermocouples 9
