High Temperature sintered silicon carbide crucibles up to 1,900 degrees Celsius (in a controlled atmosphere), and have good resistance to chemical erosions and thermal shock.

With its ability to accommodate temperatures as high as 1,650 C, significantly above the melting point of most alloys, it can be safely used without the risk of contaminating the molten metal. Our crucibles also offer superior mechanical strength at very high temperatures allowing them to be moved around safely for operations such as casting.

XICAR® Properties

Maximum temperature of 1650 °C in air and up to 1,900 °C in a controlled atmosphere

Maximum length up to 3,000 mm with a maximum OD of 300 mm

XICAR® thermocouple protection tubes are for both direct as well as indirect temperature sensing in molten metal (e.g. furnace wall or roof) temperature reading with Type R or S elements in molten brass, copper, cast iron, stainless steel or silicon metal

For temperature measurements in non-ferrous launders or pouring troughs

Better or equal quality than HEXOLOY SE tubes.

Description

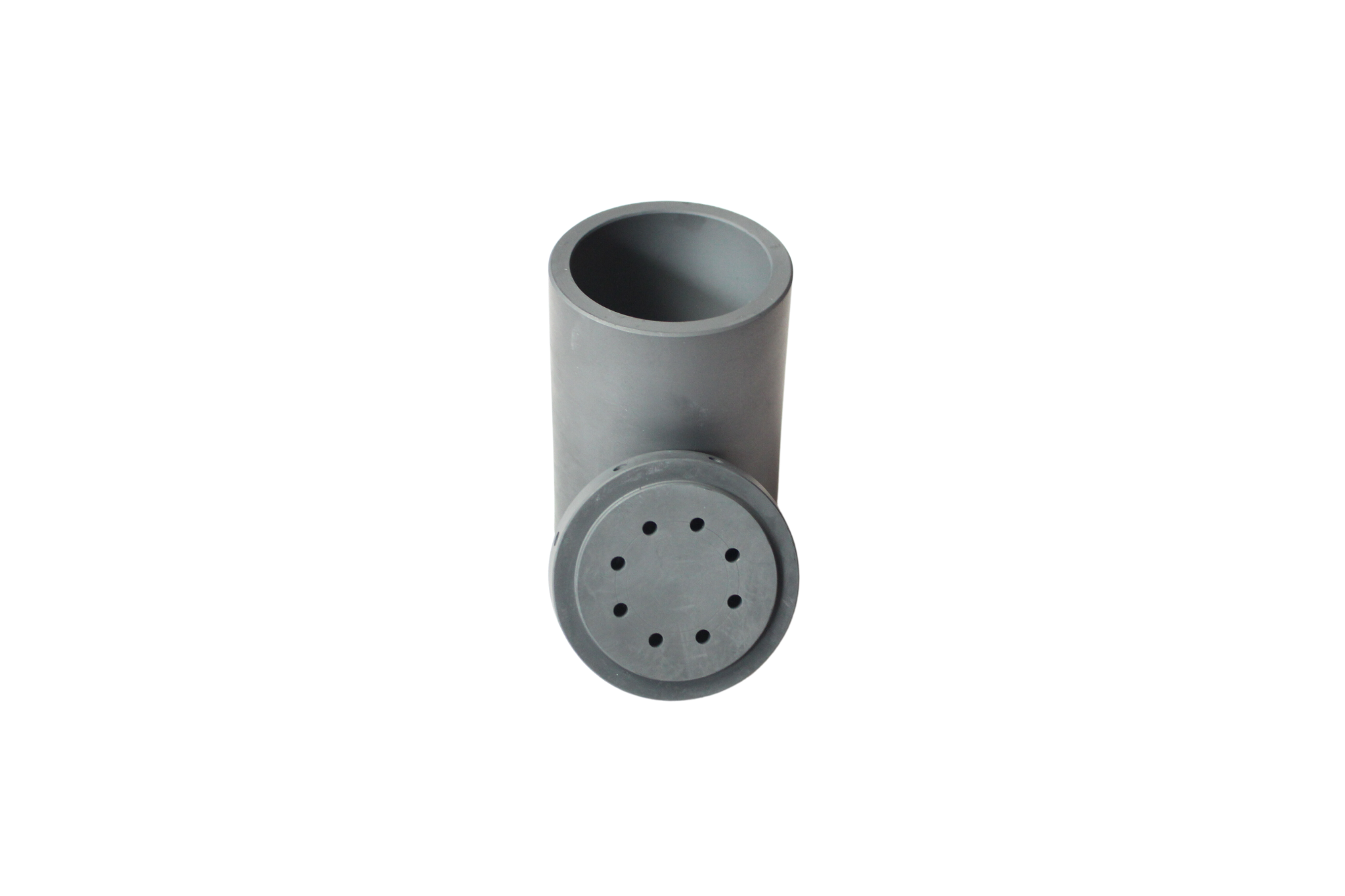

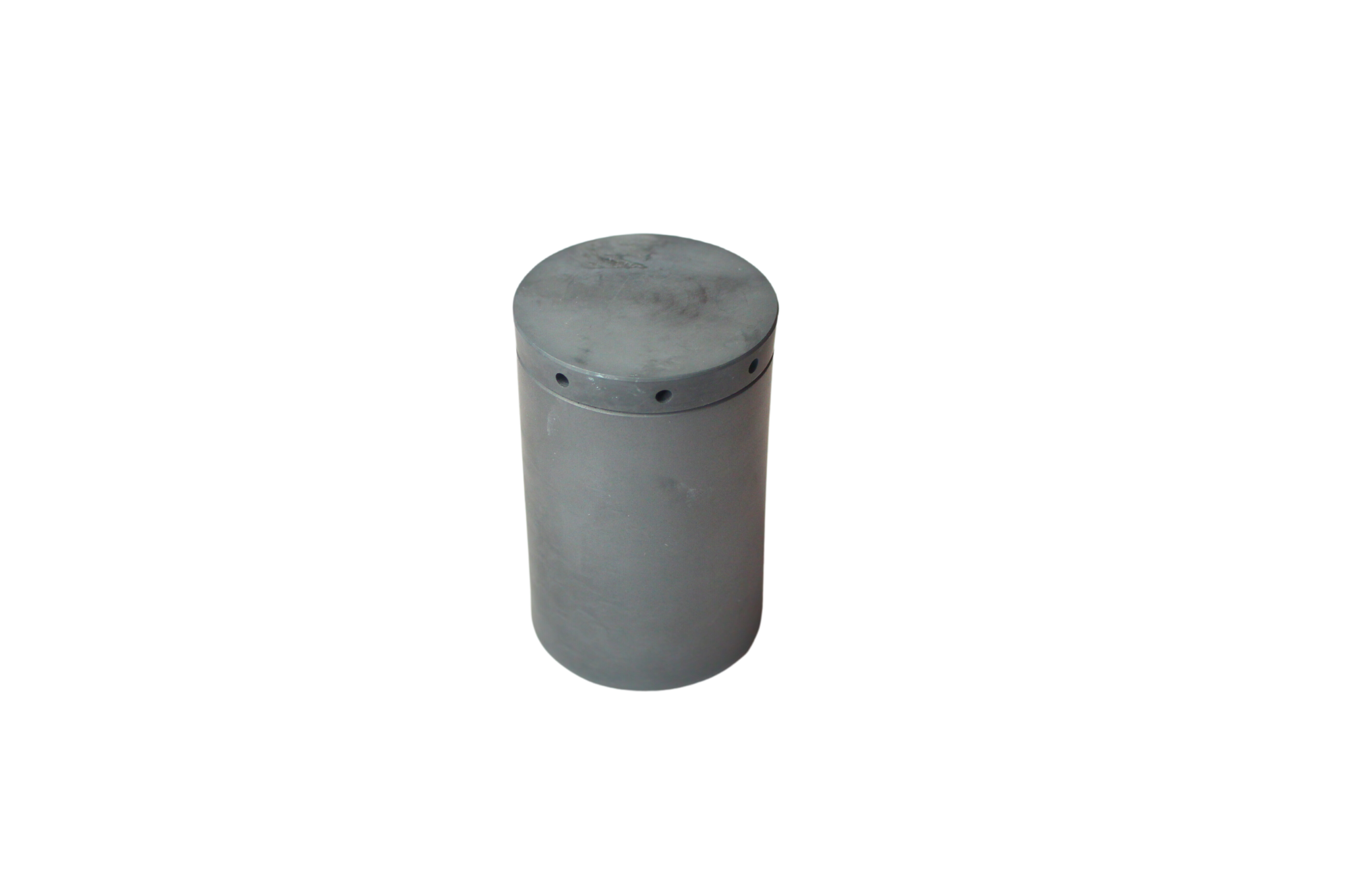

High Temperature Sintered Silicon Carbide Crucibles

Xicar data sheet

XICAR® datasheet
Temperature Max	1700 °C – 1800 °C
Density	> 3.10 g/cm3
Open porosity	0%
Flexural/Bending strength 20°C	320-400 MPa
Flexural/Bending strength 1300°C	360-410 MPa
Tensile strength	1950-2600 MPa
Young’s Modulus	410 GPa
Thermal Conductivity 20°C	116 W/m.k.
Thermal Conductivity 1200°C	35 W/m.k.
Coeff. Thermal Expansion	4.0 K-1×10-6
Hardness HV1 kg/mm2	2350
Acid-proof Alkaline	Excellent
Thermal Shock Resistance (delta T)	600 °C
Impact Fracture toughness	4.0 MPa m½

XICAR® corrosion resistance

XICAR® High Corrosion Resistance Sintered SiC applications

Corrosive Medium	Temperature ˚C	Corrosion Rate (mg/cm2 years)
98% H₂SO₄	100	1.8
85% H3SO₄	100	<0.2
54% HF	25	<0.2
50% NaOH	100	2.5
45% KOH	100	<0.2
70% HNO3	100	<0.2
37% HCl	86	<0.2
10% HF HNO3	25	<0.2

• The only ceramic material resistant to hydrofluoric acid corrosion
• Resistant to high concentration of nitric acid, sulfuric acid, mixed acid, alkali, oxidant and organic chloric acid.

Download brochure

Please visit our brochure page to get a free download!
