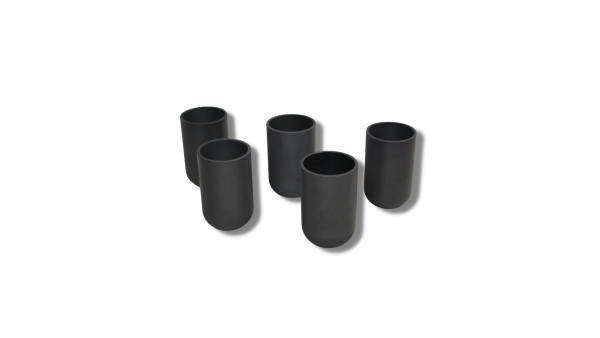

High temperature sialon crucibles

High temperature sialon crucibles

High Temperature Sialon crucibles up to 1,800 degrees Celsius (in a controlled atmosphere), and have good resistance to chemical erosions and thermal shock.

Sialon crucibles are an excellent alternative to graphite crucibles for the melting of aluminum, copper and other metals. They have good resistance to chemical erosions and thermal shock. Especially Sialon crucibles are an excellent alternative to graphite crucibles for the melting of aluminum, copper and other metals. Silicon Nitride crucibles have the advantages of high purity, high temperature resistance, with big size, good thermal insulation, economization on energy ,quality stability etc.

Sialon crucibles are widely used in many manufacture processes including precious metals, vaporizing of molten aluminium.

Sialon ceramics is one of the few materials that can combine the high purity and high temperature properties required for these processes.

Share:

Description

High temperature sialon crucibles

High temperature sialon crucibles Sialon CeramicsA crucible is a container used to hold metal for melting in a furnace and it is needed to withstand the extreme temperatures encountered in melting metals.

The crucible material must have a much higher melting point than that of the metal being melted and it must have good strength even when white-hot.

Our company offers  Sialon crucibles & Ceramics (Silicon Nitride) crucibles in different sizes and types. Whenever you need crucibles, just feel free to contact us, and we will reply you in a shortest time.

Sialon data sheet

Material data sheet Sialon (Si3Al3O3N5)
Typical Sialon grades NVD-001 NVD-002 NVD-003 NVD-004
Bulk Density g/cm3 3.2 3.1 3.3 3.2
Water Absorption 0 0 0 0
Flexural Strength MPa 580 900 1,020 790
Vickers Hardness HV1 GPa 13.9 12.7 15.0 13.8
Fracture Toughness (SEPB) MPam1/2 4 ~ 5 6 ~ 7 7 6 ~ 7
Young’s Modulus of Elasticity GPa 290 270 300 290
Poisson’s Ratio 0.28 0.28 0.28 0.28
Coefficient of Linear Thermal (40 – 800 °C)

Expansion

×10-6/℃ 3.2 3.4 3.3 3.5
Thermal Conductivity (20℃) W/(m・k) 25 23 27 54
Specific Heat J/(g・k) 0.64 0.66 0.65 0.66
Heat Shock Resistance 550 800 800 900
Volume Resistivity (20℃) Ω・cm >1014 >1014 >1014 >1014
